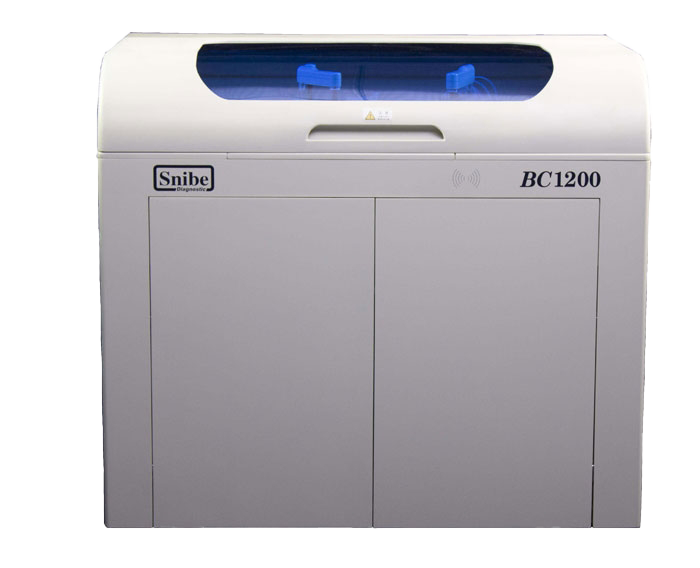

Biossays BC1200

Feature：
Conductivity: 600 T/H (photometric), 600 T/H (ISE Module)

Specification
System Type
● Automated discrete, STAT priority

conclusion

● 600 T/H (photometric), 600 T/H (ISE Module)

The principle of measurement

● End point, rate, fixed time

● Colorimetry, turbidimetry, ion selective electrode technology

Sample handling
●115 sample positions, continuous loading, polytype primary support tube and microcontainer cup

Handling of reagents
● 2 discs, 90 positions, refrigerator with independent power switch, continuous charging

Sample volume
● 2μL-35μL, 0.1μL scale

Reagent volume
● 20 µL-350 µL, 1 µL step

Reaction volume
● Minimum reaction volume up to 150 µL

Reaction cuvette
● 120, the optical diameter is 6 mm

Reaction temp
● 37℃±0.1℃

The light source
● Halogen lamp, lifespan up to 2500 hours

Wave length
● 340 nm, 380 nm, 405 nm, 480 nm, 505 nm, 546 nm, 570 nm, 600 nm, 630 nm, 660 nm,
700 nm, 720 nm, 750 nm, 780 nm, 800 nm

Water consumption
● Deionized water 16 liters/hour

Dimensions
● 1220mm*800mm*1150mm

Weight
● 230 kg
